RFID Reader

UHF+NFC Reader

Frequency:13.56Mhz+UHF
Interface:USB
Operating System:Win XP\Win CE\Win 7\Win 10\LIUNX\Vista\Android
Support cards:MF(S50/S70/Ntag203 etc.ect. 14443A protocols cards)+UHF
Product description: UHF+NFC Reader/COMBO chip reader
INQUIRY

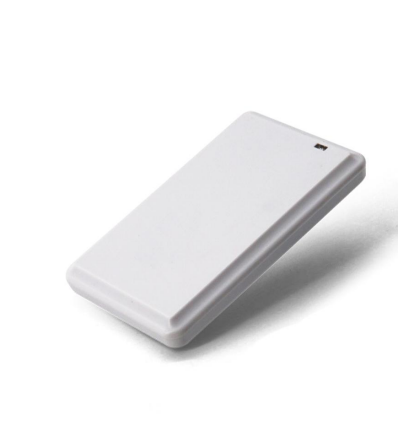

R17-D USB is a small desktop reader, compatible with ISO 18000-6C standard. The operating frequency is 902MHz~928MHz and 13.56mhz . It is a small integrated reader that can be used for short-distance identification or background card issuer management. Easy to carry, suitable for personnel access control, picture file management, and back-end electronic tag reading, writing,authorization, formatting and other operations.

Application areas:
Logistics warehouse management, intelligent parking lot management, product anti-counterfeiting detection, consumption management, attendance management, catering management, swimming pool management and other systems have been widely
used.

Technical Parameters:

Features
working frequency:		National standard (920~925MHz) 13.56mhz
		American Standard (902~928MHz)
		Other multinational frequency standards (customized)
Label Agreement:		ISO18000-6C (EPC GEN2) 13.56mhz
Frequency hopping method:		Broad spectrum frequency hopping (FHSS) or fixed frequency that can be set by software;
Antenna parameters:		2dBi circular polarization antenna (built-in)
Output Power:		12.5dBm~26dBm (software adjustable)
Reading distance:		The maximum reading distance of the tag: 0.5m (related to factors such as transmit power, antenna type, tag type and application environment)
		Maximum distance to write tags: 0.2m (depending on factors such as transmit power, antenna type, tag type and application environment)
Operating mode:		Active mode
		Passive mode
		Answer mode (not recommended)
External interface			working environment
Power interface:	DC +5V		Operating temperature:	-20℃～55℃
Communication Interface:	USB virtual keyboard		storage temperature:	-40℃～85℃
	USB virtual serial port (need to be customized)
Physical parameter
size:	104mm×68mm×10mm
weight:	100g/200g
annex
Power Adapter:	USB powered		RS-232 signal line:	Equipped
Power cable:	Equipped		Development kit:	Provide SDK(920~9258MHz )
