RFID Card

Epoxy Coin Tag Small size

Material: PVC +Epoxy/PET+Epoxy/etc
Chip :125khz/13.56mhz
Tag size: Diameter 20MM, thickness 1MM (ready-made molds have diameter 60MM, thickness 2MM and diameter 20MM, thickness 2MM) Other sizes can be customized
Read and write distance: 0-5CM (different power card readers, there will be a difference.)

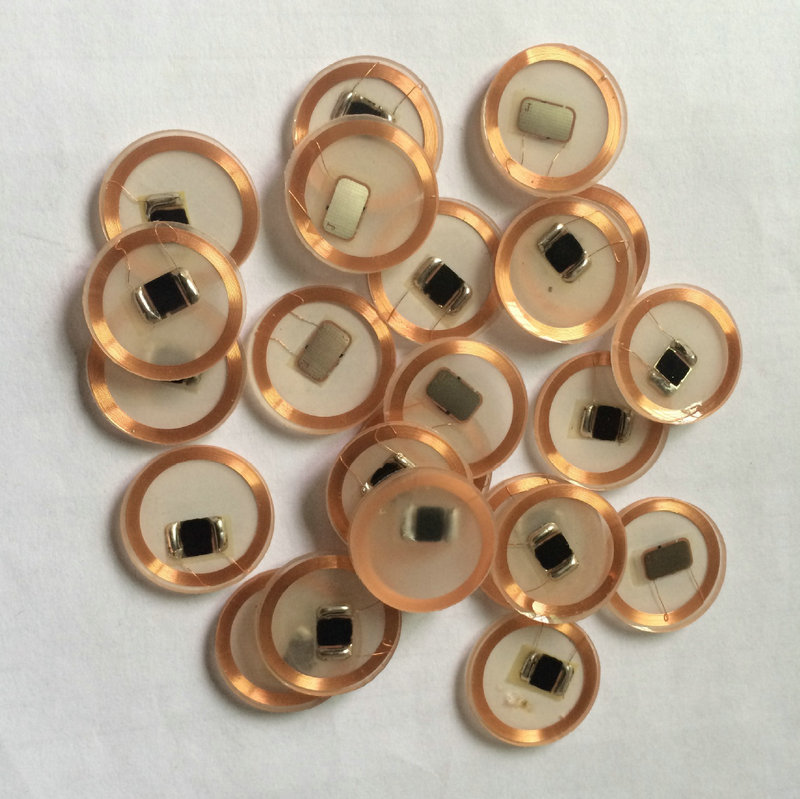

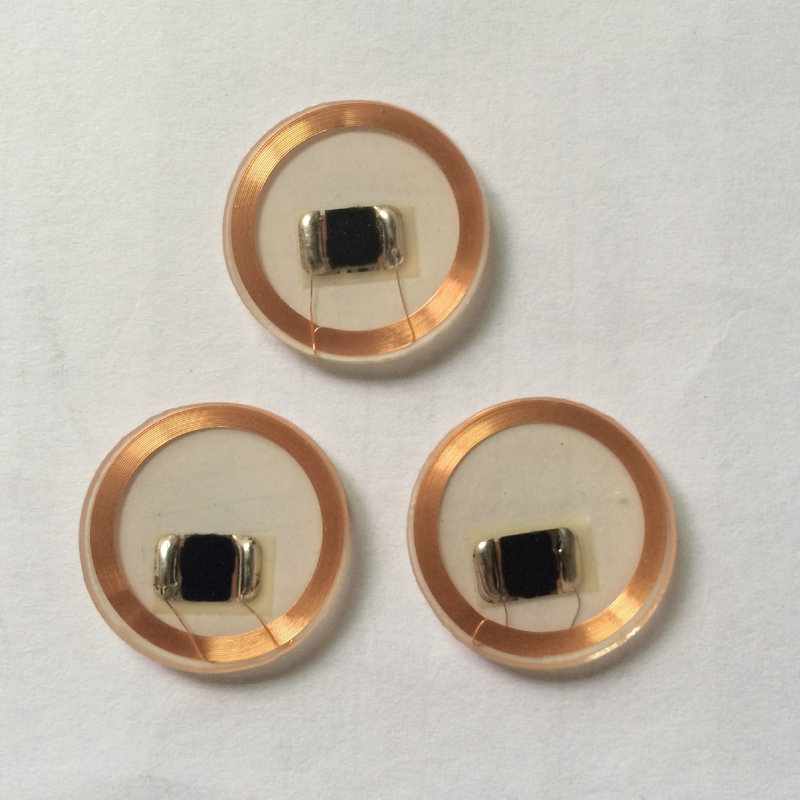

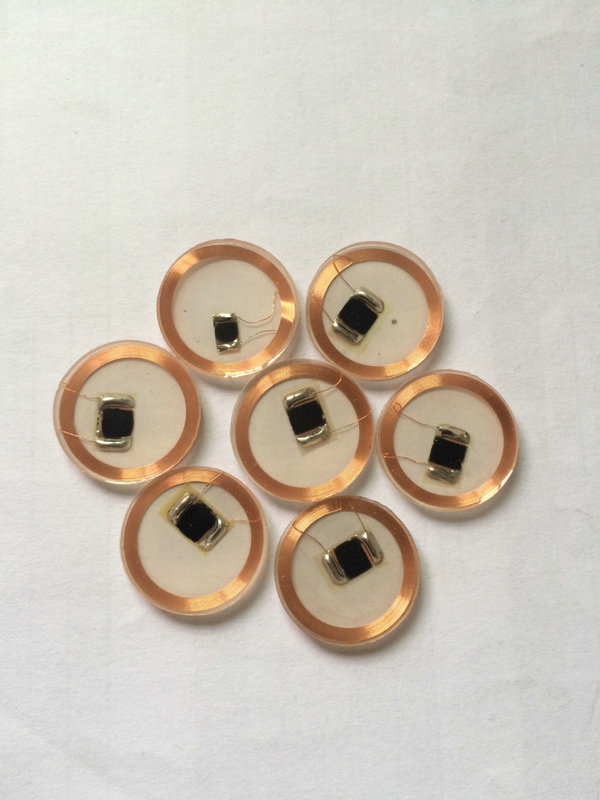

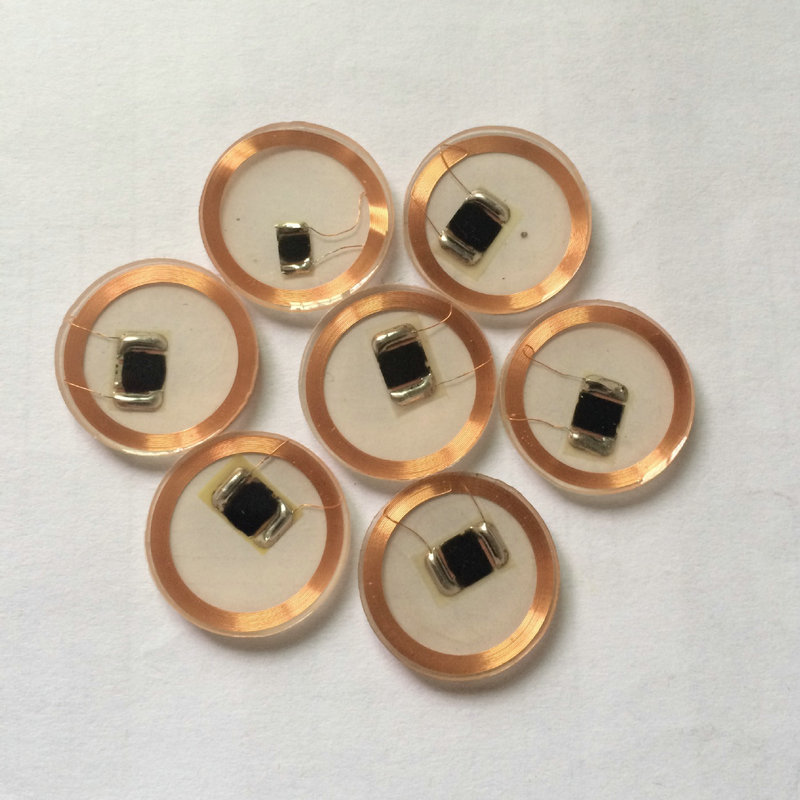

Product description: Epoxy Coin Tag/RFID Epoxy Tag
INQUIRY

Epoxy Tag

Tag size: Diameter 20MM, thickness 1MM (ready-made molds have diameter 60MM, thickness 2MM and diameter 20MM, thickness 2MM) Other sizes can be customized

Product process: AB glue + copper coil

Agreement: ISO 14443A (or ISO 15693)

Chip model: FM1108 (or ID, I CODE 2, etc.)

Memory capacity: 1024 bytes/other

Induction frequency: 13.56MHz/125khz （IF size is big also can do UHF）

Read and write distance: 0-5CM (different power card readers, there will be a difference.)

Storage temperature: -25℃ ~ +150℃

Operating temperature: -25℃ ~ +150℃

The data is kept for 10 years, and the memory can be erased 100,000 times

Scope of application: item packaging, item management, asset management, power management, other item management, etc.
