RFID Token /RFID Coin Tag

Ultralight Ev1 Abs Token

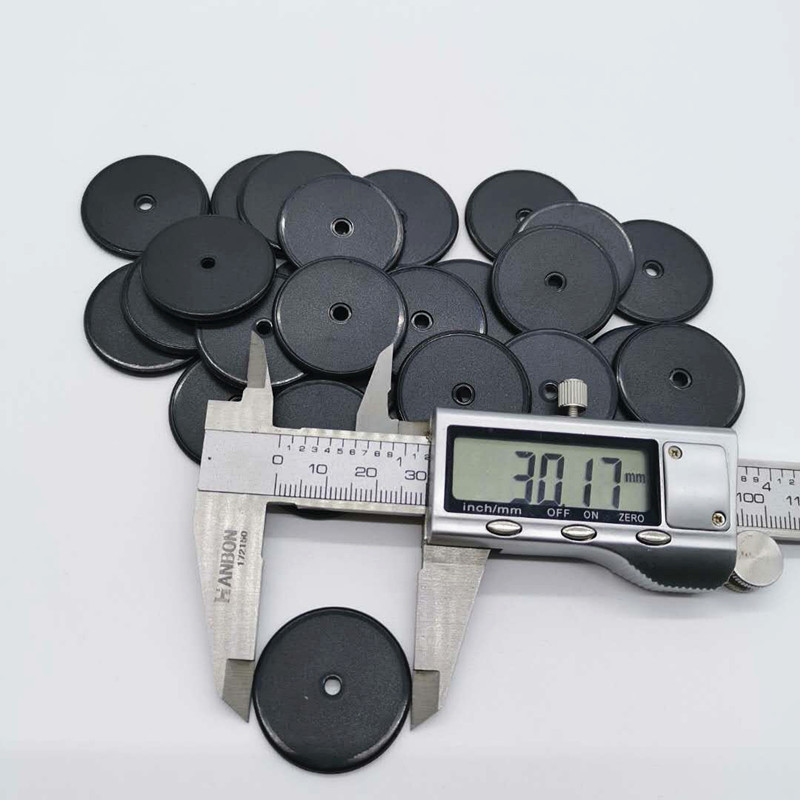

Size: Diameter 30mm
Packaging material :ABS
Integrated chip :Ultralight-EV1
Frequency:13.56mhz
Product description: Ultralight Ev1 Abs Token RFID Token High frequency Token
INQUIRY

Physical parameter
Packaging material :ABS
Size: Diameter 30mm
Product thickness: 2.5mm thick

Individual weight :1.5g

Applicable temperature :-25℃~80℃
Packing :100 bags, 5000 PCS/box
FCL weight :7.6KG(gross weight)
Installation method :3M back adhesive or screw

Performance Parameter Protocol :ISO14443A

Operating frequency :13.56MHZ

Integrated chip :Ultralight-EV1

User storage space :48 byte(384 Bits) Identification distance :1-5cm

Data retention for other parameters: more than 10 years
Erasing times: 100,000 times
Personalized process: The surface can be silk-printed with 1ogo, laser serial number or UID code
