COB Chips

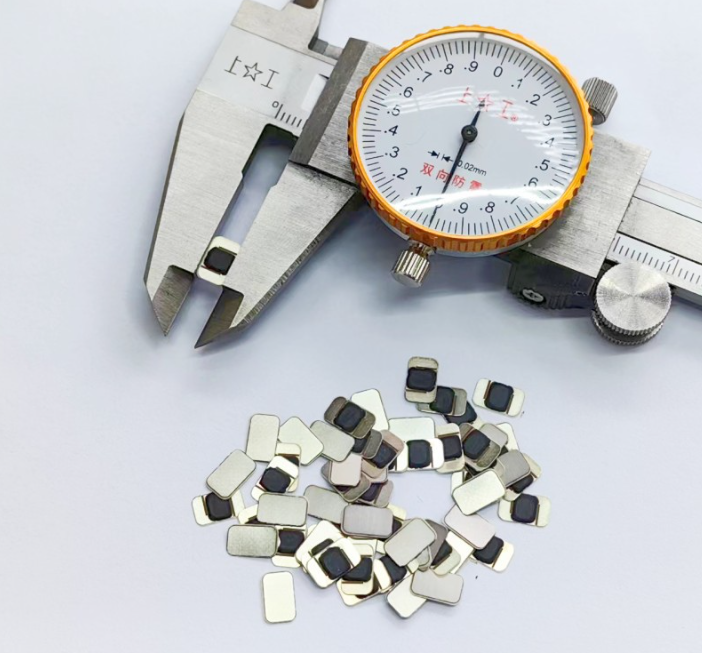

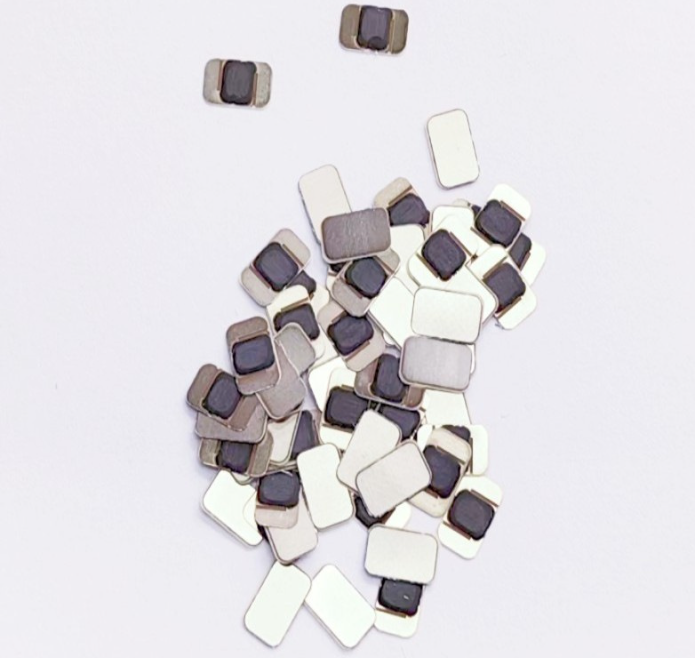

13.56MHz HF 5*8mm COB Chips

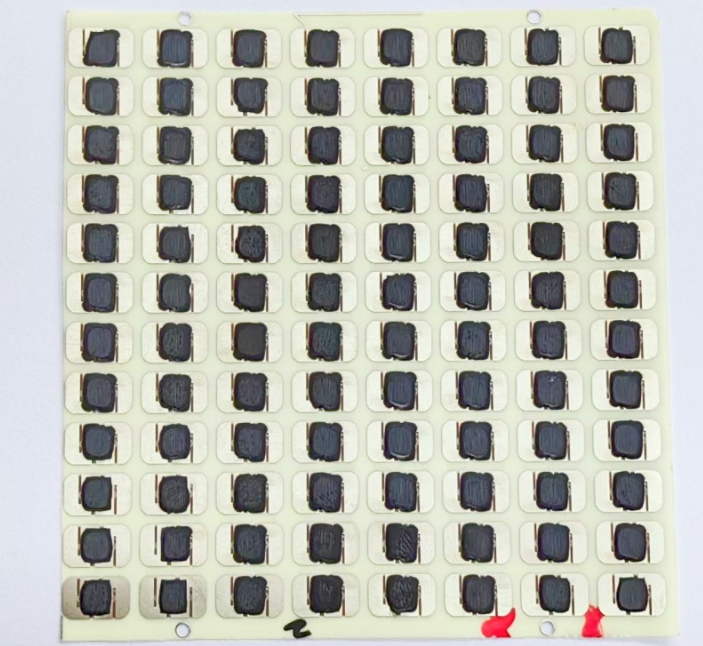

Dimension：5*8mm(96pcs), or 2.5*4mm(308pcs), 3.5*5.5mm(165pcs), customized.
Frequency：13.56MHz, HF, or Customized
Working temp：-20~70°C
Material：PCB
Product description: 1. Compact Design: COB technology can directly package the chip on the PCB, thus reducing the overall size and making the product more compact.
INQUIRY

1. Compact Design: COB technology can directly package the chip on the PCB, thus reducing the overall size and making the product more compact.

2. High Integration: COB technology can realize the integration of multiple functional modules, improving the integration of the circuit, which is conducive to simplifying the product structure.

3. Cost-effective: COB technology can reduce some of the steps in the traditional packaging process, contributing to cost control.

4. High Reliability: The chip is directly connected to the PCB, the transmission distance is short, reducing the signal attenuation and improving the reliability of the circuit.

5. Heat Dissipation: The chip is directly in contact with the PCB, which has better heat dissipation performance and is conducive to stable operation for a long time.

Dimension	58mm(96pcs), or 2.54mm(308pcs), 3.5*5.5mm(165pcs), customized.
Frequency	13.56MHz, HF, or Customized
Special Features	/
Network	/
Application	Indoor
Material	PCB
Write cycles	100,000
Working temp	-20~70°C
Certification	ISO9001
Packaging Details	A4 size: 500sheets/carton, others 200sheets / carton
	Gross Weight: 22kg / carton (2102970.45mm)
	Carton Size:
	312328cm (0.01997m)(500sheets)
	325012cm( 0.0192m)(200sheets)
Port	Shenzhen
Supply Ability	50000000 Sheet / Sheets per Month even more

Quantity (pieces)	Lead time (working days)
1 - 1000	15
> 100000	To be negotiated
