COB Chips

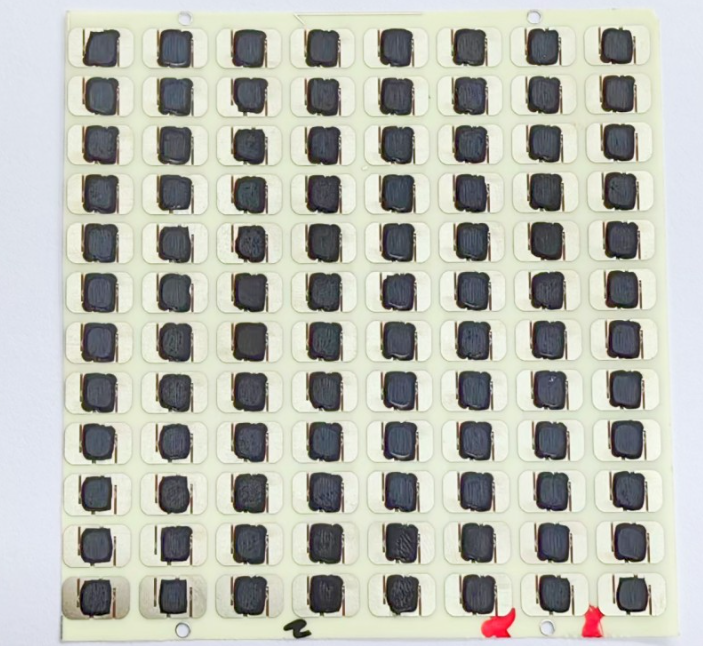

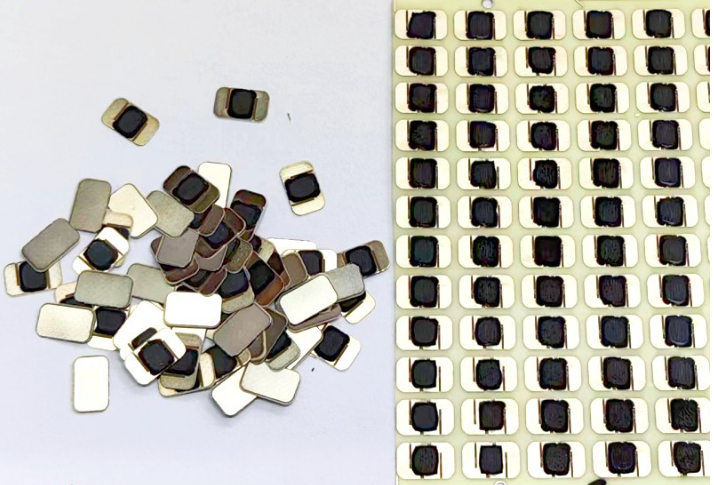

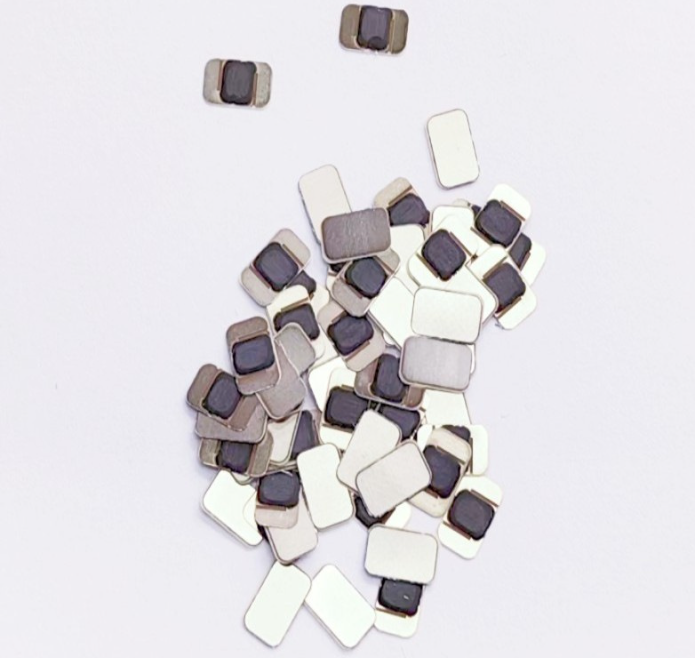

125KHz LF 3.5*5.5mm COB Chips

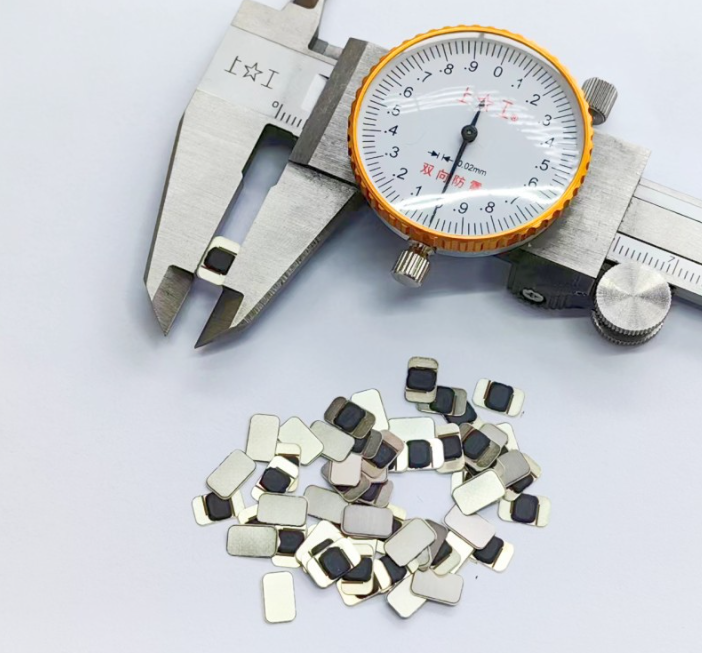

Dimension： 3.5*5.5mm(165psc), or 2.5*4mm(308pcs), 5*8mm(96pcs), customized.
Frequency：134.2KHz / 125KHz, LF, or Customized
Working temp：-20~70°C
Material：PCB
Product description: LF COB chips are widely used in LED lighting, automotive electronics, medical equipment, consumer electronics and other fields, providing more efficient, compact and reliable solutions for various ele
INQUIRY

1. Compact Design: COB technology can directly package the chip on the PCB, thus reducing the overall size and making the product more compact.

2. High Integration: COB technology can realize the integration of multiple functional modules, improving the integration of the circuit, which is conducive to simplifying the product structure.

3. Cost-effective: COB technology can reduce some of the steps in the traditional packaging process, contributing to cost control.

4. High Reliability: The chip is directly connected to the PCB, the transmission distance is short, reducing the signal attenuation and improving the reliability of the circuit.

5. Heat Dissipation: The chip is directly in contact with the PCB, which has better heat dissipation performance and is conducive to stable operation for a long time.

Dimension	3.55.5mm(165psc), or 2.54mm(308pcs), 5*8mm(96pcs), customized.
Frequency	134.2KHz / 125KHz, LF, or Customized
Special Features	/
Network	/
Application	Indoor
Material	PCB
Write cycles	100,000
Working temp	-20~70°C
Certification	ISO9001
Packaging Details	A4 size: 500sheets/carton, others 200sheets / carton
	Gross Weight: 22kg / carton (2102970.45mm)
	Carton Size:
	312328cm (0.01997m)(500sheets)
	325012cm( 0.0192m)(200sheets)
Port	Shenzhen
Supply Ability	50000000 Sheet / Sheets per Month even more

Quantity (pieces)	Lead time (working days)
1 - 1000	15
> 100000	To be negotiated
